Three Wheelers are largely used as commercial vehicles,
used to carry passengers and goods. They have bi-fuel engine, working
either on CNG or LPG and petrol for limphome. They have TMC brake system
and anti-dive front suspension. They are provided with remote location gas
filling and oil pumps drive extracted from clutch shaft. It is safe on
road and low on maintenance and highly economical. They are also cleaner
for the environment and convenient. There is an efficient battery charging
also provided along with safety measures in case of brake failure. They
have got good after sales service. Because of the bifuel mode, one can run
the vehicle in a number of ways, thereby making maintenance convenient.
Bajaj three wheelers, Piaggio van are some of the brands who make vehicles
in this category.
| Technical Specifications: | |
| Engine | |
| Type | Two stroke, forced air cooled, SI engine |
| Bore x stroke, mm | 57 / 57 |
| No. of cylinders | One |
| Displacement | 145.45 cc |
| Bore X Stroke | 62 mm X 66 mm |
| Compression ratio | 10.0 ± 0.7 : 1 |
| Max. Power, kW @ rpm | 5.24 kW @ 5000 rpm |
| Max. Torque, Nm @ rpm | 12.17 N.m a@ 3500 |
| Air Cleaner Type | Oil Bath Type |
| Clutch Type | Wet multidisc type |
| Transmission | |
| Transmission | 4 Forward + 1 Reverse |
| Chassis | |
| Type | Monocoque |
| Suspension | |
| Type | Front – Swing arm with Antidive Link, Rear – Swing Arm |
| Spring | Front - Helical coil compression spring, Rear -Helical coil compression spring |
| Shock Absorbers | Front - Hydraulic, double acting, Rear – Hydraulic, double acting. |
| Brakes | |
| Service Brake (Brief description) | Single control, right foot operated hydraulic brakes with TMC |
| Wheel Rim Size | Front- 3.00 x 8, Rear - 3.00 x 8 |
| Tyre size Front & Rear | Front & Rear - 4.00-8, 4PR |
| Electrical | |
| System Voltage | 12V, DC |
| Battary Rating | 12V, 32Ah |
| Fuel Tank | |
| System Voltage, V | 12 V, AC + DC |
| Battery rating, Ah | 12 V, 9 A.h |
| Wiper Motor | Electrical |
| Wiping system (Brief description) | Single speed electrical wiper motor with wiper arm and blade |
| Fuel tank Capacity | Full – 8.0 ltrs, Reserve – 1.4 ltrs. |
| Dimensions | |
| Wheel base, mm | 2000 |
| Overall width, mm | 1300 |
| Overall length, mm | 2625 |
| Overall height, mm | 1710 |
| Rear track, mm | 1150 |
| Min. ground clearance, mm | 180 |
| Weights | |
| Maximum GVW, kg | 610 |
| Kerb Weight, kg | 284 |
| Gradeability | 16 % (9.1°) max. |
:: Yes! I am interested ::
| Technical Specifications: | |
| Ape Xtra BSII Engine | |
| Type | Single cylinder, Naturally Aspirated Air Cooled |
| No. of Cylinders | One |
| Displacement | 395CC |
| Max Power, Kw rmp | 7.38 bhp 600 Rpm +/- 50 rmp |
| Max Torque,Nm rmp | 16.7NM 2500 rmp |
| Compression Ratio | 18:1[+/- 0.5%] |
| Ape Xtra BSIII Engine | |
| Type | Single cylinder, Naturally Aspirated Air Cooled |
| No. of Cylinders | One |
| Displacement | 436CC |
| Max Power, Kw rmp | 5.52KW 3600 Rpm +/- 50 rmp |
| Max Torque,Nm rmp | 18NM 2400-2200 rmp |
| Compression Ratio | 19:1[+/- 0.5%] |
:: Yes! I am interested ::

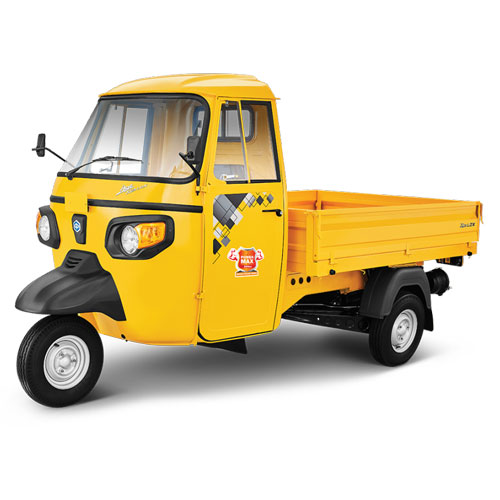

| Technical Specifications: | |
| Engine | |
| Engine Type | Single Cylider, Naturally Aspirated Air Cooled |
| Engine Model | NA |
| Displacement | 436.00 CC |
| Maximum Power | 5.53 KW @ 3600 RPM |
| Maxiumum Torque | 18 NM @ 2400 - 2200 RPM |
| MaxSpeed | NA |
| FuelTank | |
| FuelTank Capacity | 10.5 litre |
| Fuel Type | Diesel litre |
| Dimension | |
| Height | 1920 mm |
| Width | 1495 mm |
| Length | 2965 mm |
| Kerb Weight | 0 kg |
| Wheelbase | 1750 mm |
| Ground Clearence | NA |
| Turning Circle Radius | NA |
| Load Body Dimension | |
| Loading Body Height | 1065 mm |
| Loading Body Width | 1400 mm |
| Loading Body Length | 1480 mm |
| Load Max Hegiht | NA |
| Gross Vechicle Weight | Kg |
| Suspension | |
| Suspension Front | Helical Spring With Hydraulic telescopic Shock Absorber |
| Suspension Rear | Rubber compression spring with hydraullic telescopic Shock Absorber |
| Tyres | |
| Tyres | 4.50 - 10 , 8PR |
| Brakes | |
| Brakes Type | Drum Breaks Hydraulically actuated internal expanding shoe t |
| Brakes Front | Drum |
| Brakes Rear | Drum |
| Parking Brake | NA |
| Others | |
| Transmission | 4 forward, 1 reverse |
| Clutch | Multi Disc, Wet Type |
| GearBox | Constent Mesh GB |
| Steering Type | Handle Bar Type |
| MAX Gradeability | NA |
| MAX Restartability | NA |
| Seating Capacity | 240 |
| Colours | Brilliant Green, Charming Blue, Sahara Yellow, Golden Yellow, Western Red, Bianco White |
| Pay Load | NA |
